6010

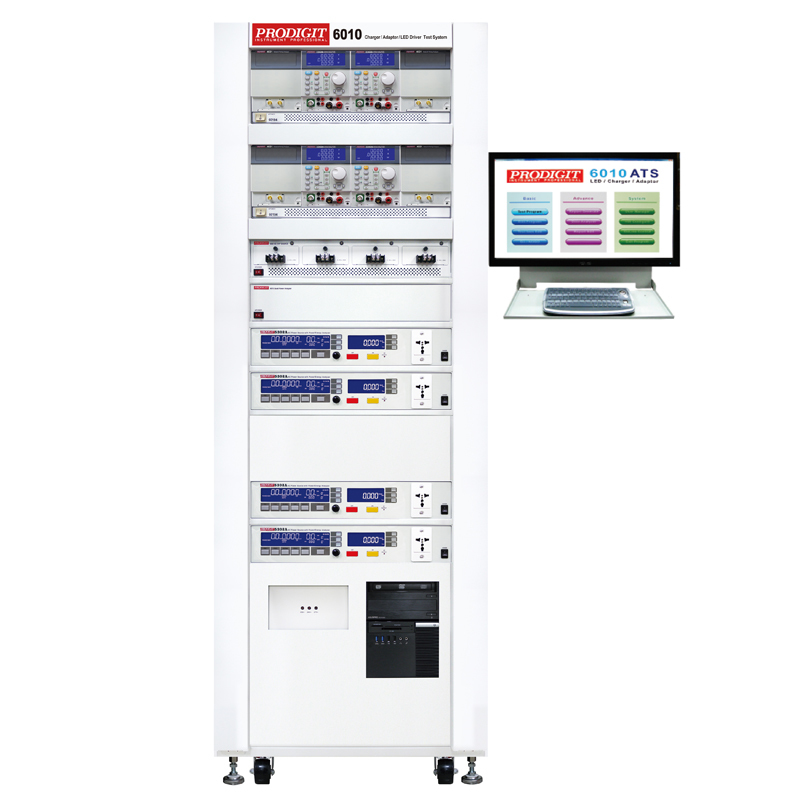

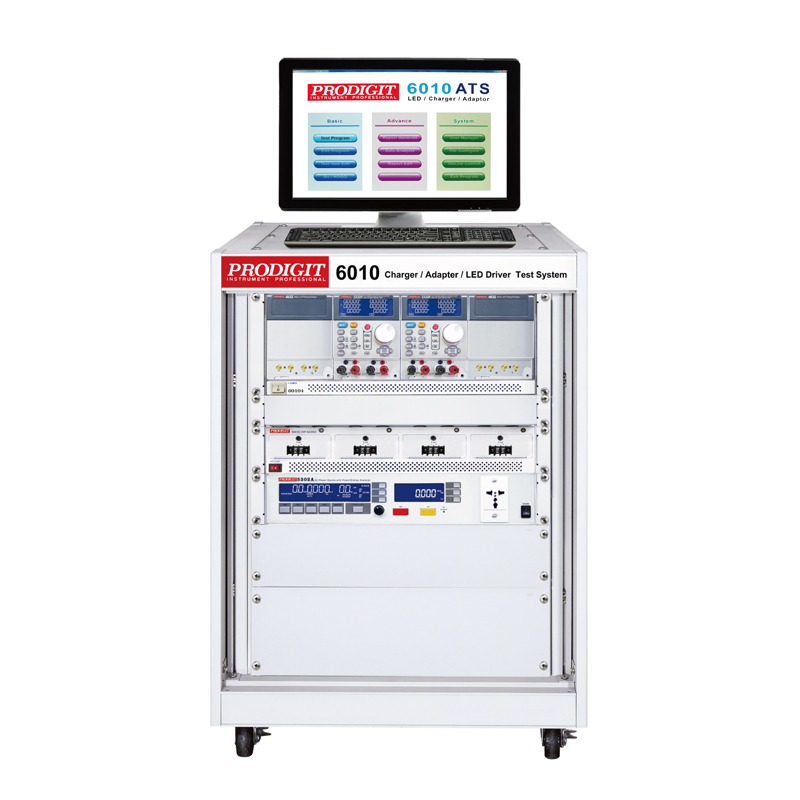

Charger / Quick Charger / Adapter / LED Driver Test System
Description
l 6010 Charger /
Quick Charger / Adapter / LED Driver Test System is able to meet multi-types
power products test requirements，and its multi-U.U.T
test simultaneously capability can significantly enhance the production line
throughput. It also possess multi-modular combination that includes low noise
analog AC source with Triac to simulate output, four sets precision power meter,
two or four sets ripple noise / timing measurement module, four sets OVP DC power supply, 3310F series & 3332F/3336F
Electronic Load module and unique design 3340F series for LED power driver
output test.

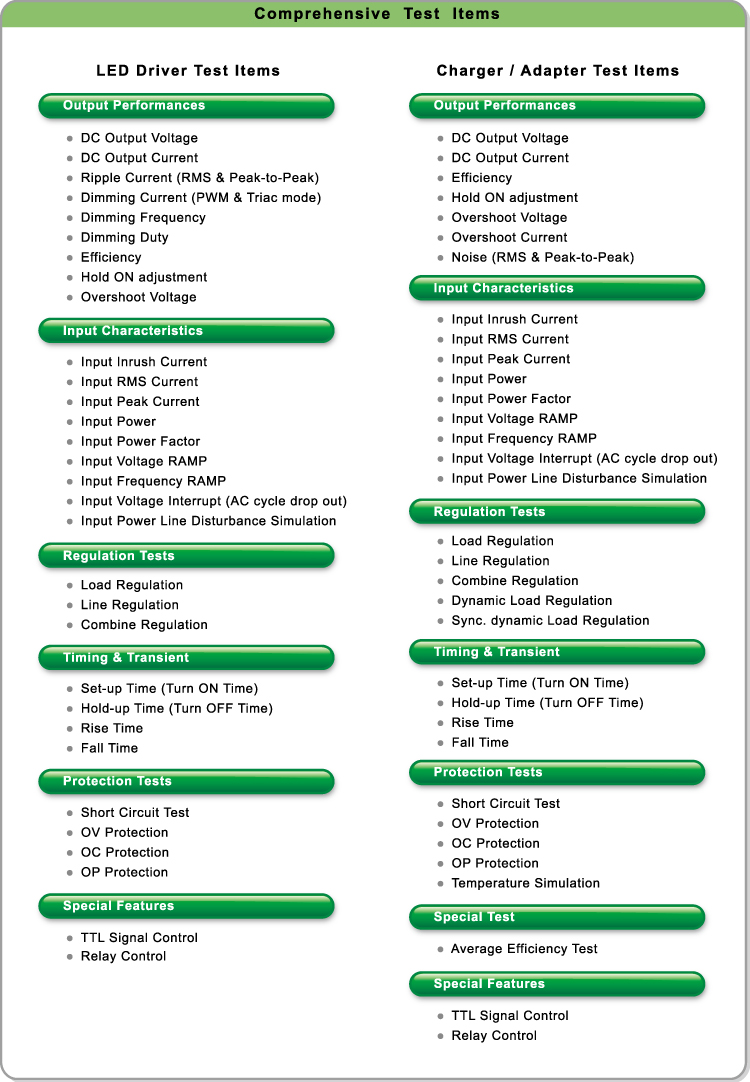

l Test items are
included with five categories Power Test Features :
1.
Output Performances -- the general performance of U.U.T
2.
Input Characteristics -- the input power parameters of U.U.T
3.
Regulation Tests -- the regulation of U.U.T
when the change of the input power and load
4.
Timing & Transient -- measuring the timing and transient
of Turn ON, Turn OFF
5.
Protection Tests -- trigger and test the protection
circuit of U.U.T.
Features
l
Cost effective and
full - featured modular design
l
Multi - function test
capability for charger, adapter, LED driver power
l
Multi-U.U.T test simultaneously capability，significantly enhance the production line throughput
l
Support Windows 7/XP
operation system
l
Open architecture
software platform
1.
Support related
hardware expansion
2.
User editable test
item
3.
User editable test
program
4.
User editable report
format & statistical report
5.
On-line control
function
6.
User authority
control
7.
Support Bar Code
Reader.

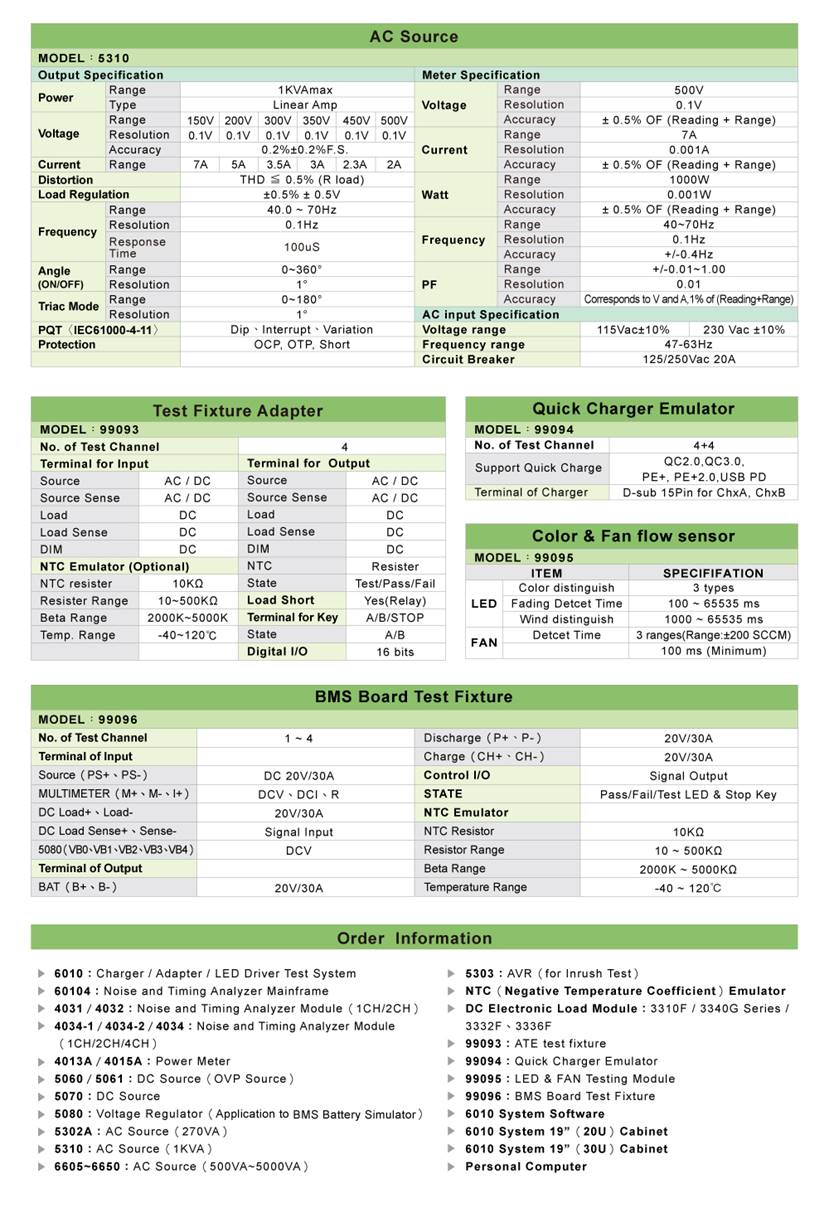

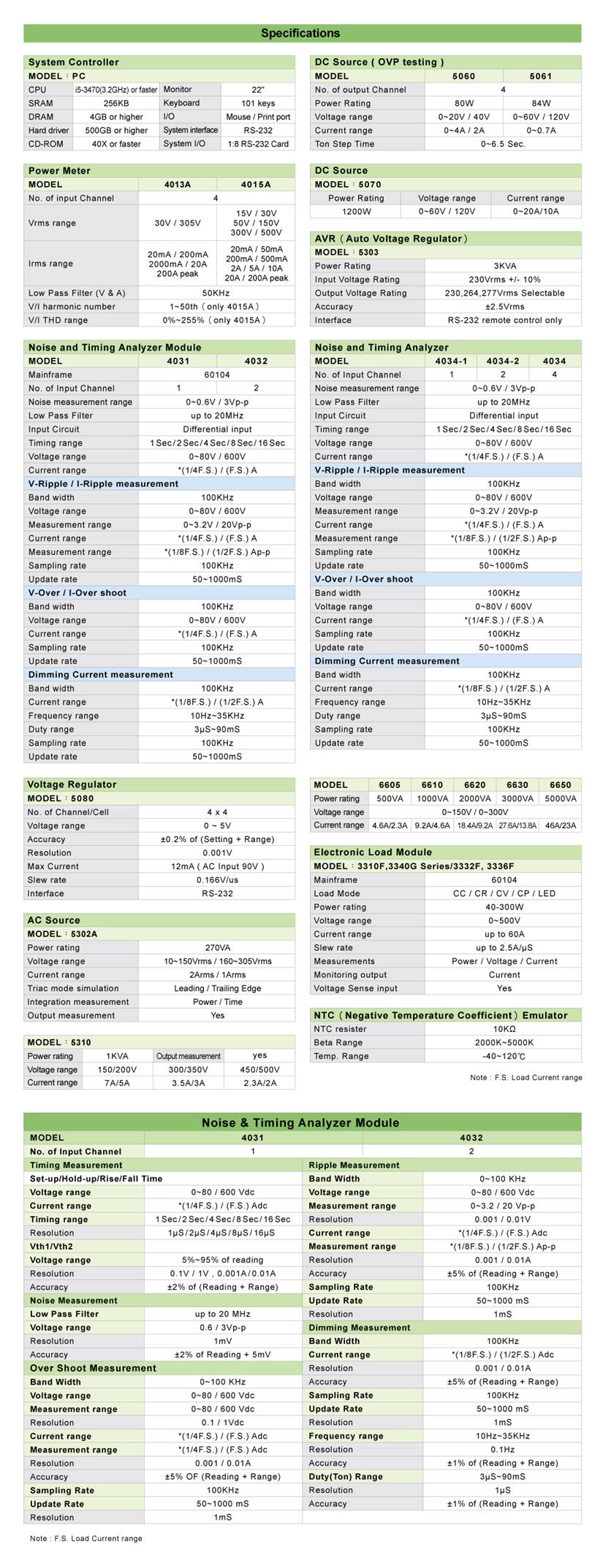

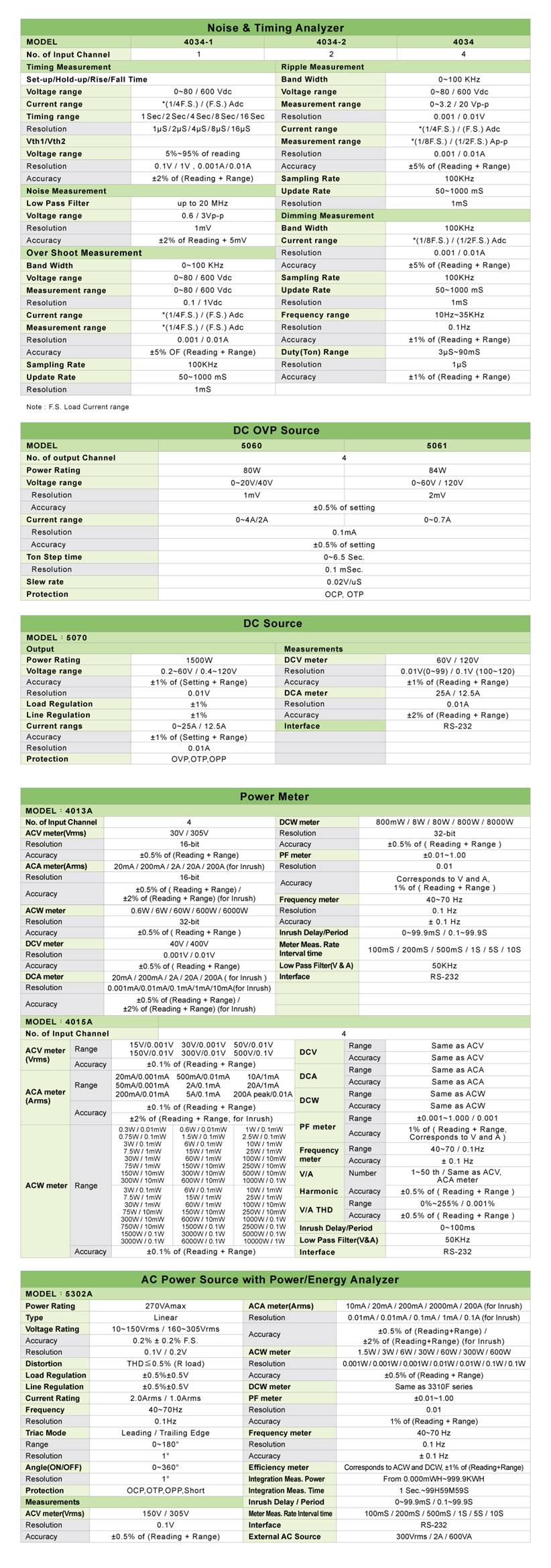

Specifications
